Diesel Laptops Universal Truck Diagnostic Kit review: hardware, coverage and renewals

What the $2,595 price buys

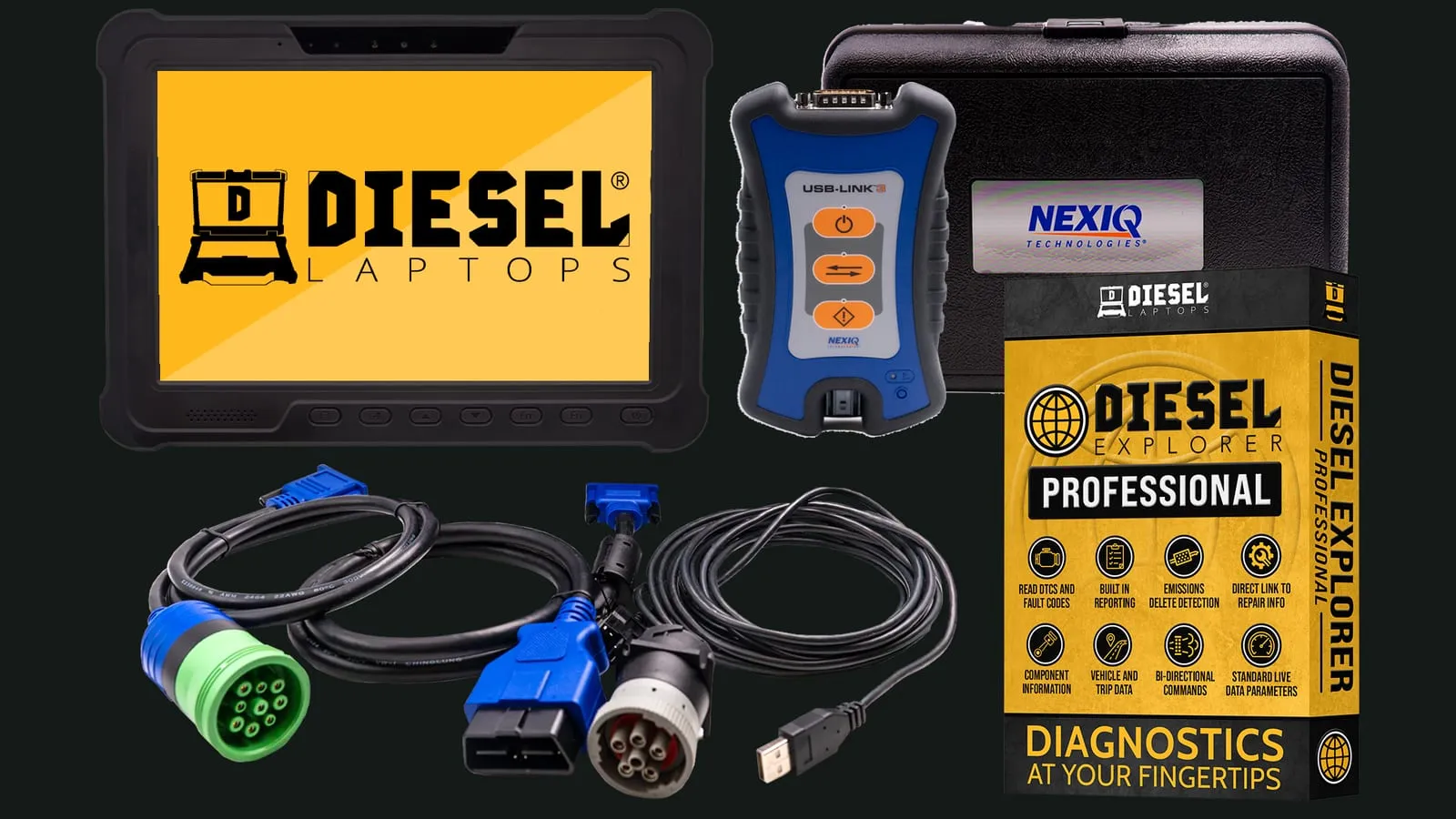

The listed price is for four named bundle components. The computer is a Flytech M285 rugged tablet. The vehicle interface is the wireless edition of the Nexiq USB-Link 3. Diesel Laptops adds its 9-pin to 6-pin cable adapter and 12 months of Diesel Explorer Professional.

That distinction matters because the product page also names software that is compatible with the Nexiq interface. Detroit Diesel Diagnostic Link, Navistar ServiceMaxx, Caterpillar Electronic Technician, Cummins INSITE and other OEM applications appear in a compatibility list. The page does not say licences for those applications come with this kit, so they are not treated as included hardware or software here.

The M285 specification is unusually concrete. Diesel Laptops lists an Intel Tiger Lake UP3 processor, a 10-inch FHD Gorilla Glass display rated at 800 nits, IP65 protection, MIL-STD-810H certification and operation from minus 29°C to 60°C. One battery is included, hot swapping is supported, and runtime is stated as up to nine hours. Dimensions, tablet weight, memory and storage are absent.

Protocols and published vehicle coverage

The USB-Link 3 carries the protocol breadth. Diesel Laptops lists CAN FD and DoIP, then gives a longer protocol table covering J1708, J1587, two J1939 or ISO 15765 CAN channels, J1850 in VPW and PWM forms, ISO 9141 or KW2000, and ALDL. Its API list contains RP1210a/b and J2534. Connection choices are wired USB, Bluetooth and Wi-Fi.

Diesel Explorer is described for heavy-duty and medium-duty commercial trucks. The page publishes a detailed list for its current bidirectional commands rather than a simple all-makes promise. Named applications include Cummins EPA07 and newer engines, several Detroit families, selected Ram, Ford and GM diesels, Hino J05E and J08E, multiple International families, Isuzu 4HK1, Mack MP7 and MP8, Mercedes MBE, PACCAR MX and Volvo D11 and D13.

Those names do not make every function universal. The year, emissions generation, connector and engine matter in the page’s own list. A buyer should match the exact application and required command before treating broad truck coverage as confirmed.

The software clock and optional services

The $2,595 is a one-time kit price, but not a one-time licence for every function. Diesel Explorer Professional is included for 12 months. Diesel Laptops says that after the first year the software becomes read-only, with an option to buy a monthly subscription. The page does not provide that renewal figure, so a complete multi-year cost cannot be calculated from this source.

Professional access is what the page ties to bidirectional commands such as DPF regeneration and aftertreatment resets, as well as access to hundreds of live parameters. Read-only access therefore should not be confused with retention of the original capability set.

Two more services sit outside the bundle. Diesel Repair is labelled an available upgrade for repair documents, wiring diagrams, labour times and other information. Sending reports to the Diesel Health platform requires a separate Diesel Health subscription. Neither belongs in the included-value calculation.

Reporting and diagnostic functions

The published base functions include reading faults from standard vehicle modules, viewing live and static vehicle data, graphing parameters and producing PDF health reports. With the Professional term active, the page adds the published bidirectional command list and emissions-delete detection for named Detroit, Cummins, International and Volvo or Mack applications.

These are manufacturer descriptions, not results from a workshop assessment. No scan speed, module-discovery rate or command success rate is published, and none has been created for this review. The zero score remains a placeholder until an operator can assess those behaviours.
